Solar Aviation Obstruction Light

Solar Aviation obstruction Light

Independent Solar Aviation Warning Solution

The LEOKRISH Solar Powered Aviation Obstruction Light provides an independent lighting solution for marking tall structures where conventional electrical supply may be difficult or undesirable.

An integrated solar-powered system, automatic day/night operation and built-in lithium battery provide reliable nighttime warning operation.

Key Features :

  • Solar-powered operation
  • High-efficiency solar panel
  • Automatic day/night operation
  • High-intensity red LED
  • More than 2000 cd intensity
  • Visible range exceeding 5 km
  • IP65 weatherproof design
  • UV-stabilised construction
  • Low power consumption
  • Built-in lithium battery
  • Long battery backup
  • Easy installation

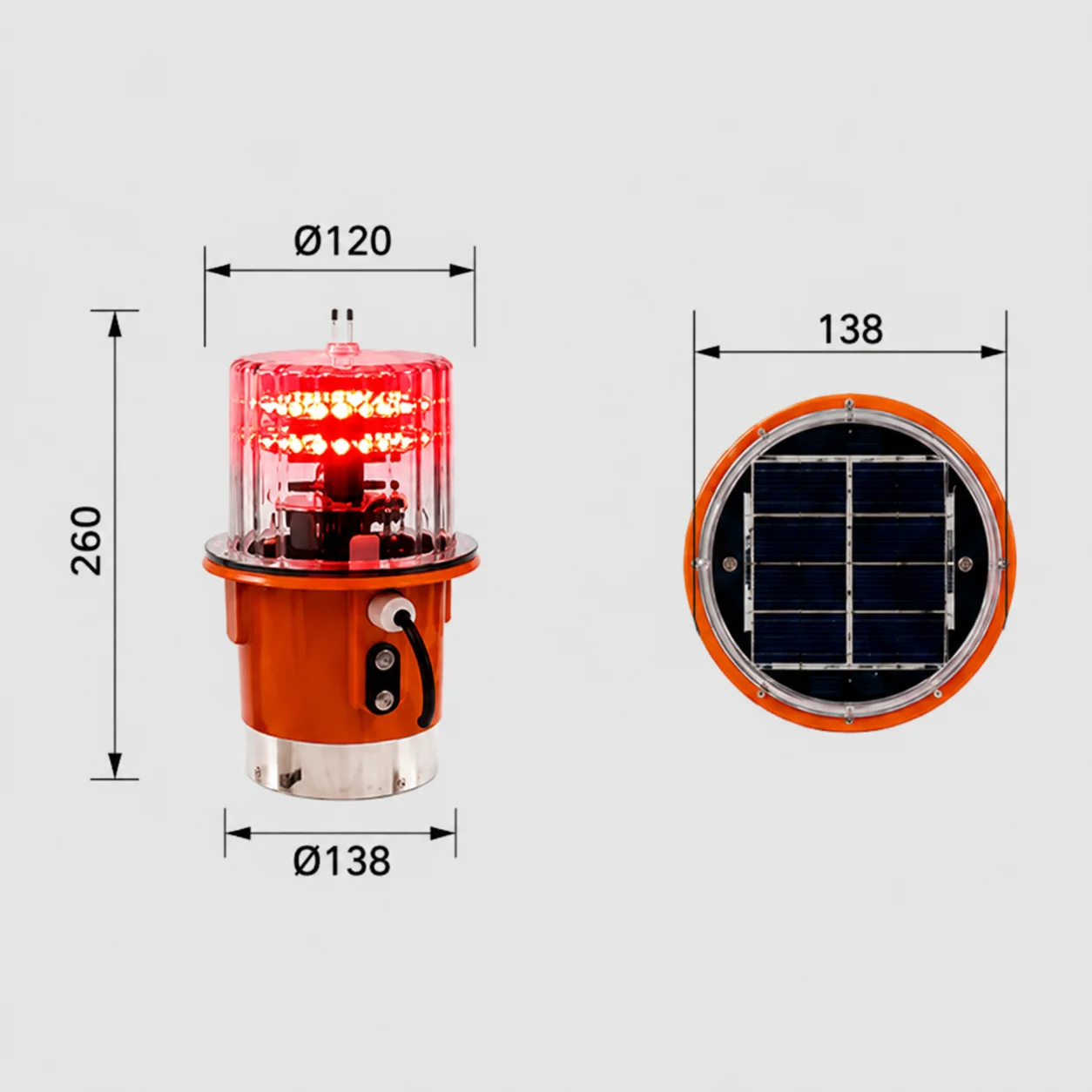

Solar Aviation obstruction Light-dimensions1

Dimensions (mm)

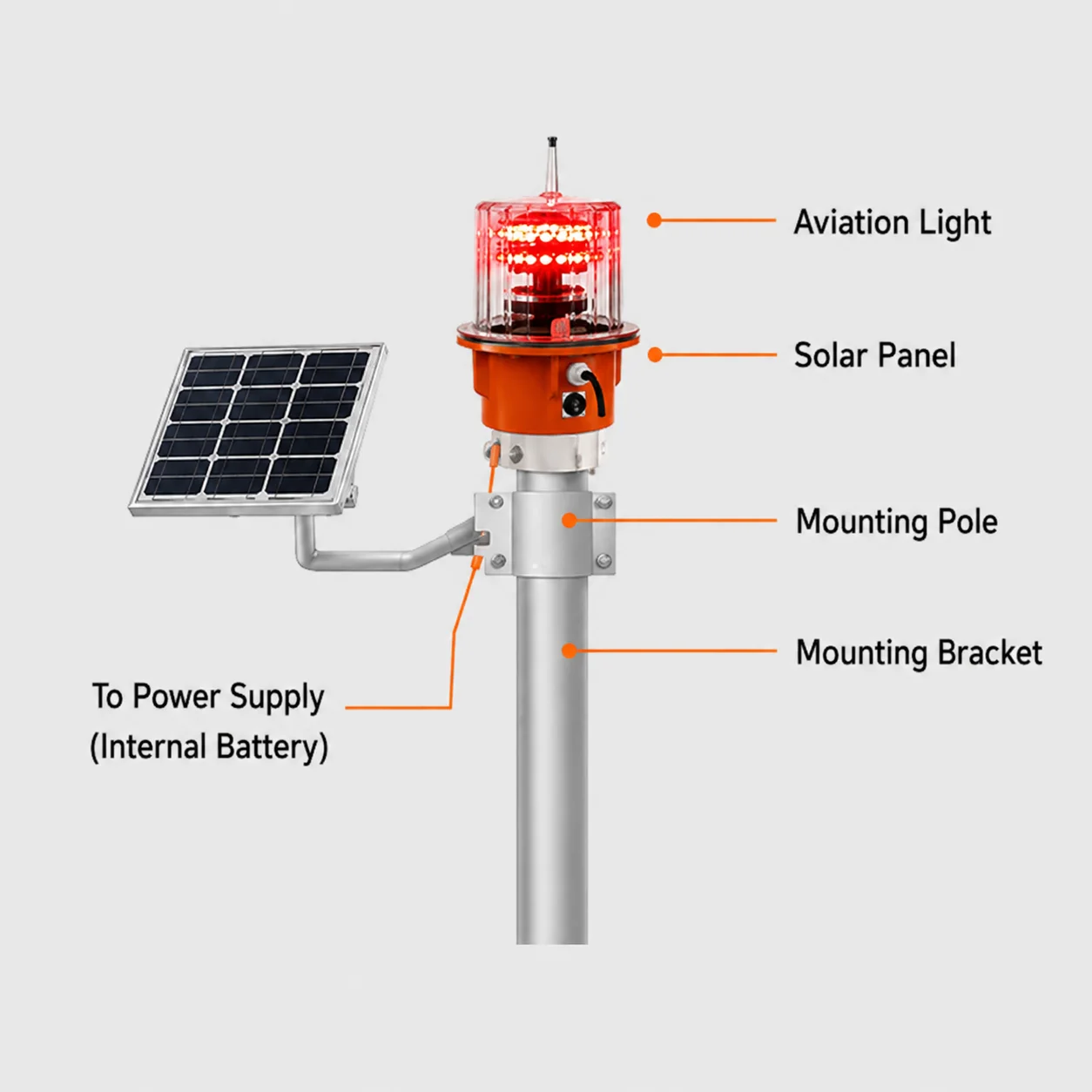

Installation Diagram

Product Specifications

Specification Details
Model LK-SOL-01
Light Source High Intensity LED
Colour Red
Intensity > 2000 cd
Visible Range > 5 km
Flash Rate 40 ± 5 FPM
Operation Automatic Day / Night
Solar Panel 10W / 12V
Battery Lithium 12.8V / 6Ah
Autonomy > 3 Days when fully charged
Protection IP65
Material Polycarbonate Lens & ABS Body
Operating Temperature -20°C to +60°C
Mounting Vertical / Horizontal

Applications :

  • Telecom towers
  • Wind energy systems
  • Industrial chimneys
  • High-rise buildings
  • Broadcasting towers
  • Tall structures and masts
