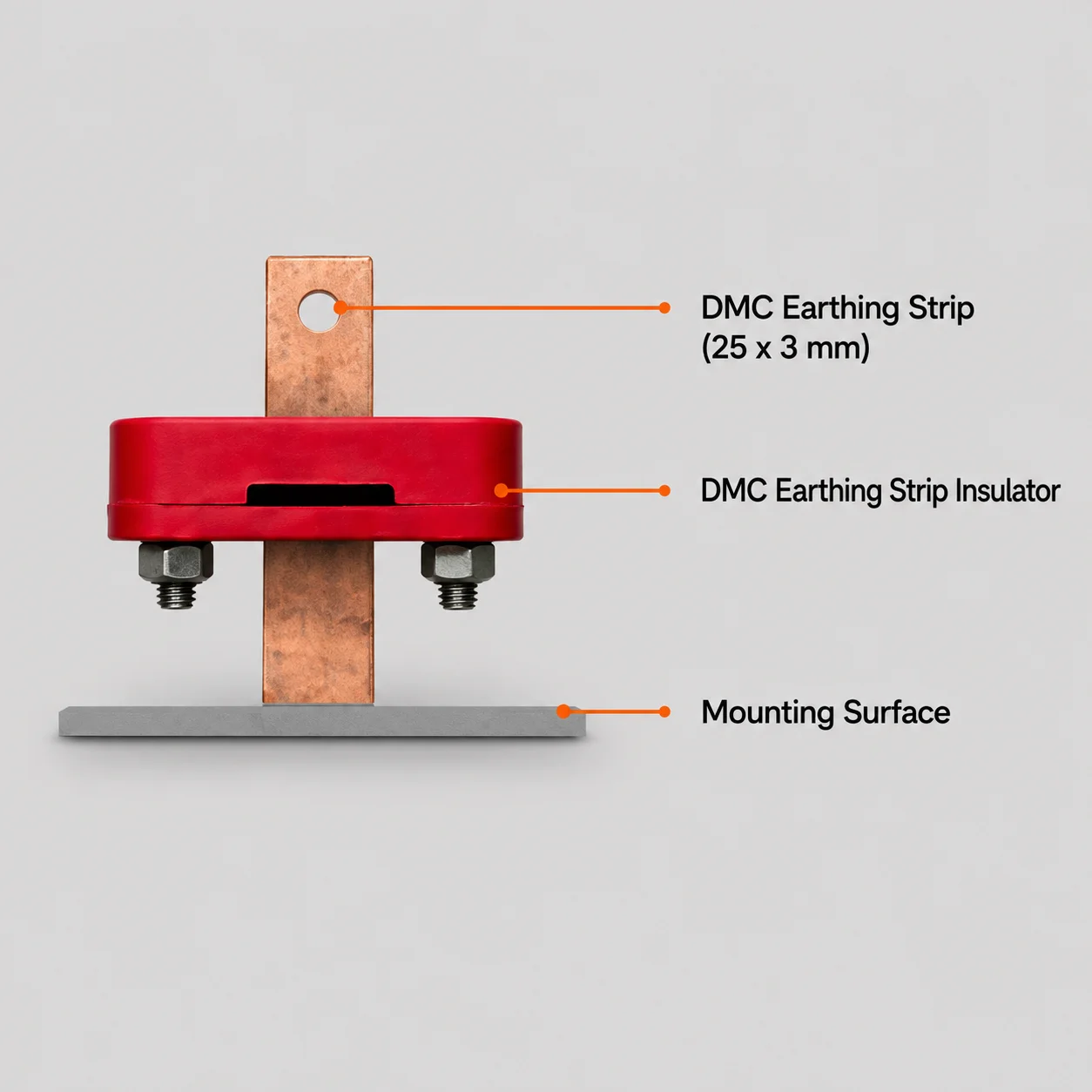

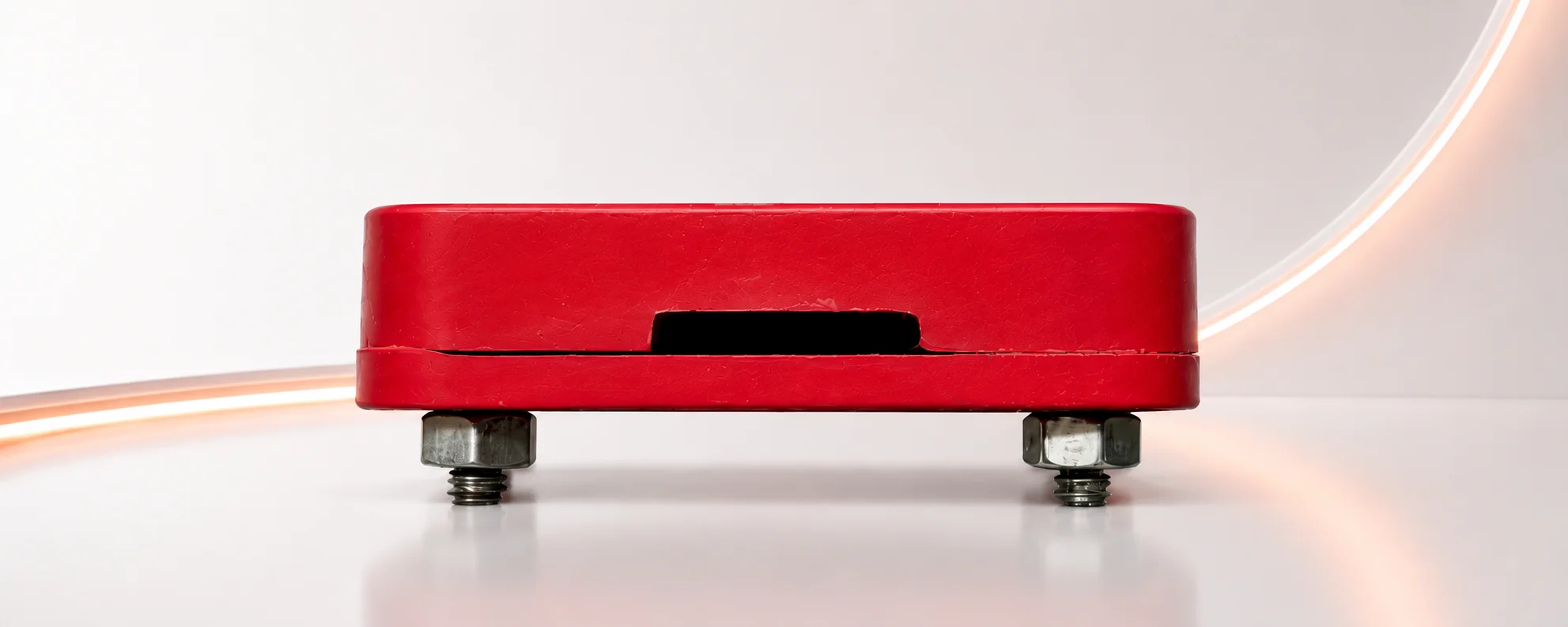

The LEOKRISH DMC Earthing Strip Insulator is designed to securely support 25 × 3 mm earthing strips used in earthing and lightning protection installations.
Its DMC/BMC body provides strong electrical insulation and mechanical support, while SS304 hardware helps provide dependable performance in indoor and outdoor environments.
| Specification | Details |
|---|---|
| Model | LK-ESI-01 |
| Compatible Strip Size | 25 × 3 mm |
| Body Material | DMC (BMC) |
| Bolts & Nuts | Stainless Steel SS304 |
| Bolt Size | M8 × 20 mm |
| Rated Voltage | 1000V DC |
| Withstand Voltage | ≥ 5 kV |
| Insulation Resistance | ≥ 10⁹ Ω |
| Operating Temperature | -40°C to +85°C |
| Protection | IP67 |
| Mounting | Surface Mount |

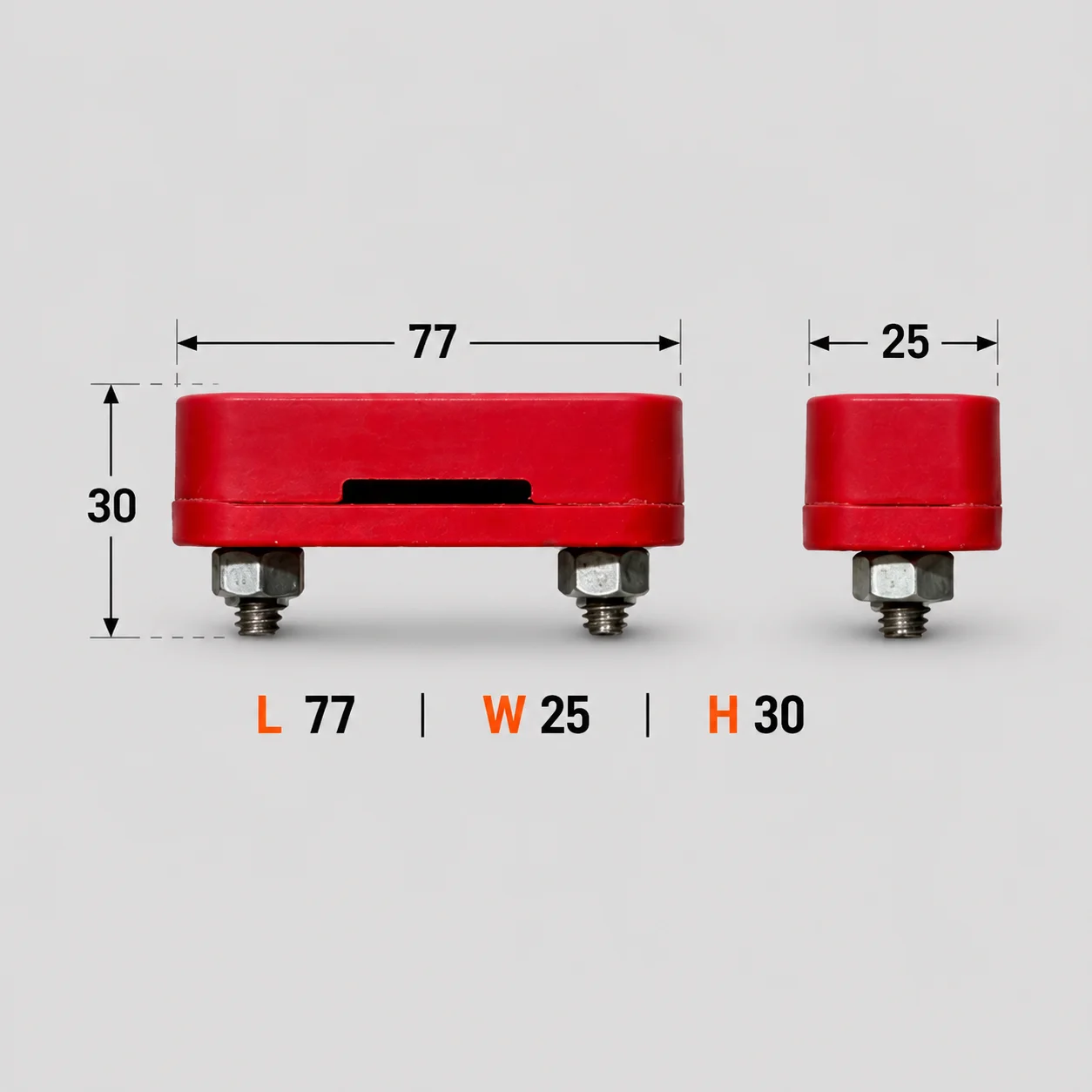

| Dimensions | 77 × 25 × 30 mm |
| Weight | Approx. 0.120 kg |
