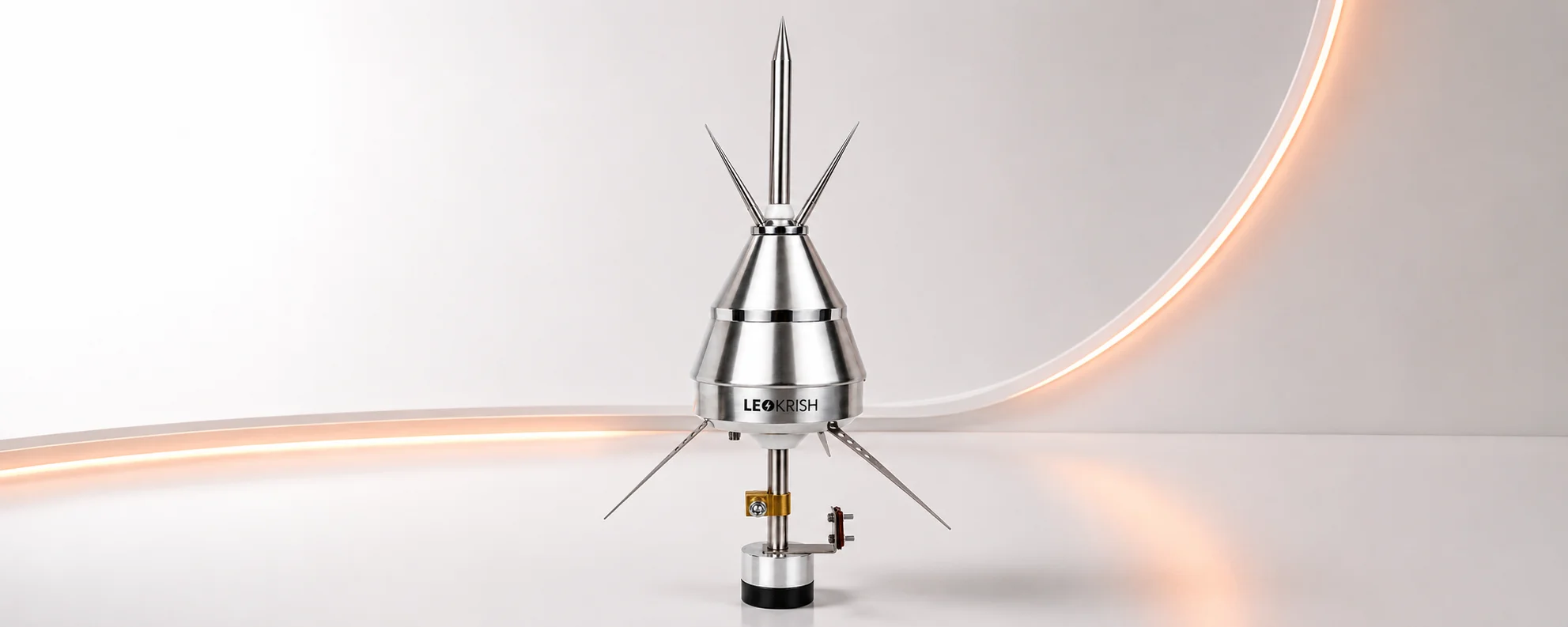

The LEOKRISH ESE Lightning Arrester is designed to provide advanced lightning protection by attracting lightning discharge toward a controlled interception point and safely directing the resulting current into the earthing system.
Manufactured using SS316 stainless steel, the arrester is designed for long-term outdoor operation and protection of a wide variety of structures.
| Specification | Details |
|---|---|
| Model | LK-ESE-01 |
| Technology | Early Streamer Emission (ESE) |
| Standard | NFC 17-102 |
| Material | Stainless Steel SS316 |
| Protection Radius | Up to 110 metres* |
| Advance Time ΔT | Up to 60 µs* |
| Streamer Emission Voltage | ≤ 20 kV |
| Lightning Current (Iimp) | 100 kA (10/350 µs) |
| Operating Temperature | -40°C to +85°C |
| Mounting | Mast / Pole |
| Pole Diameter | 25–50 mm |

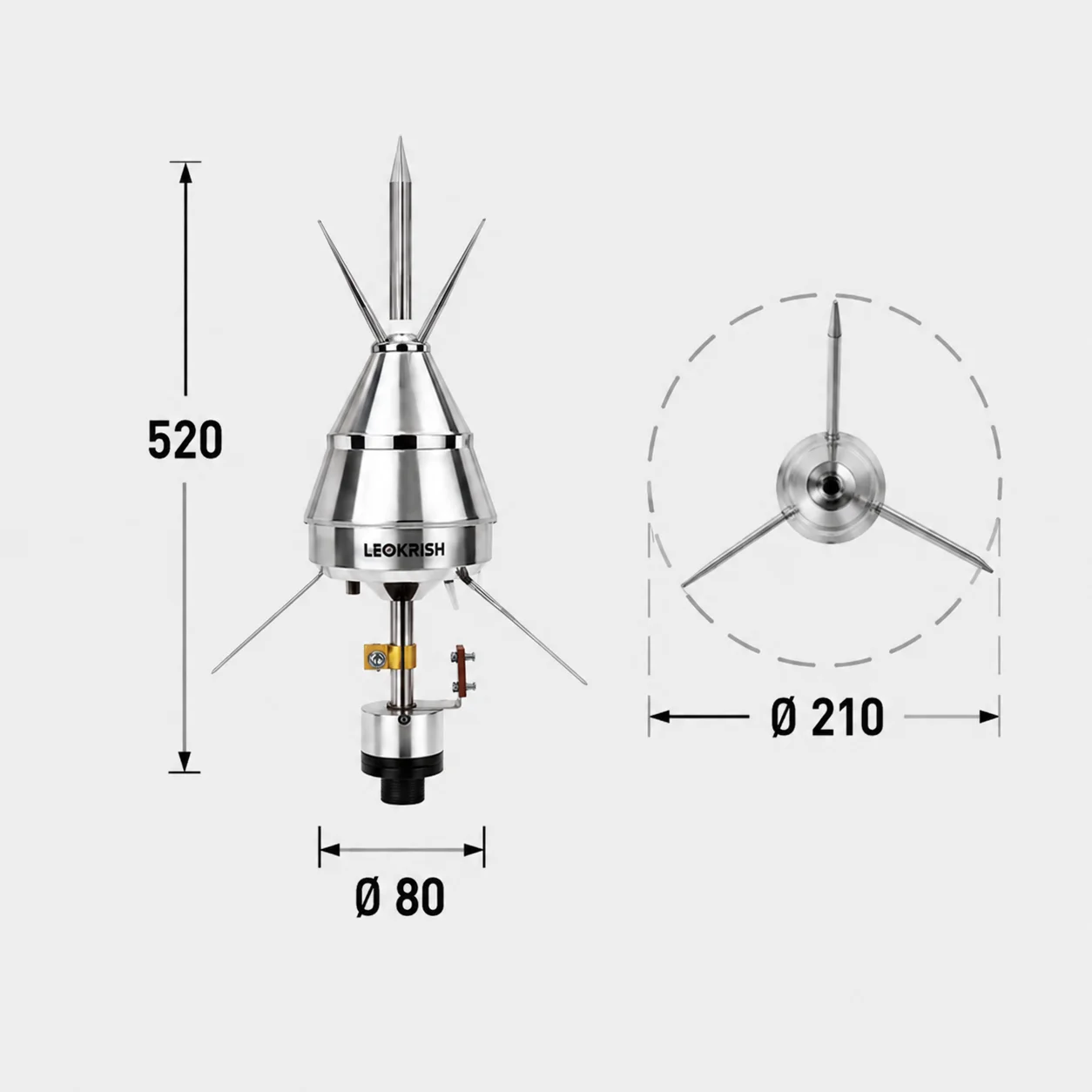

| Height | Approx. 520 mm |
| Weight | Approx. 2.5 kg |
