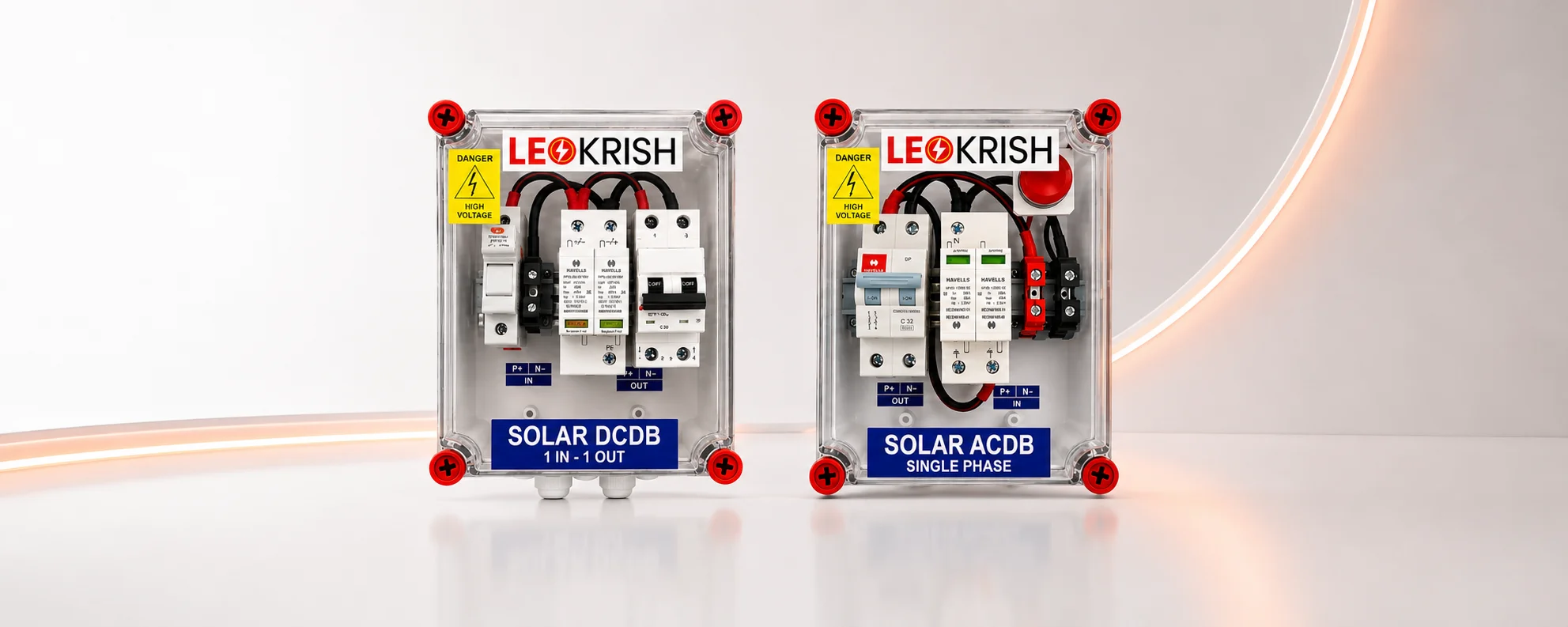

The LEOKRISH Solar ACDB Single Phase is designed to provide protection, isolation, and safe AC power distribution in solar installations. It helps protect the system against overcurrent, electrical surges, and short circuits, while ensuring reliable power flow between solar equipment and connected loads.
Its compact IP65 polycarbonate enclosure makes it suitable for rooftop, residential, commercial, and industrial solar applications.

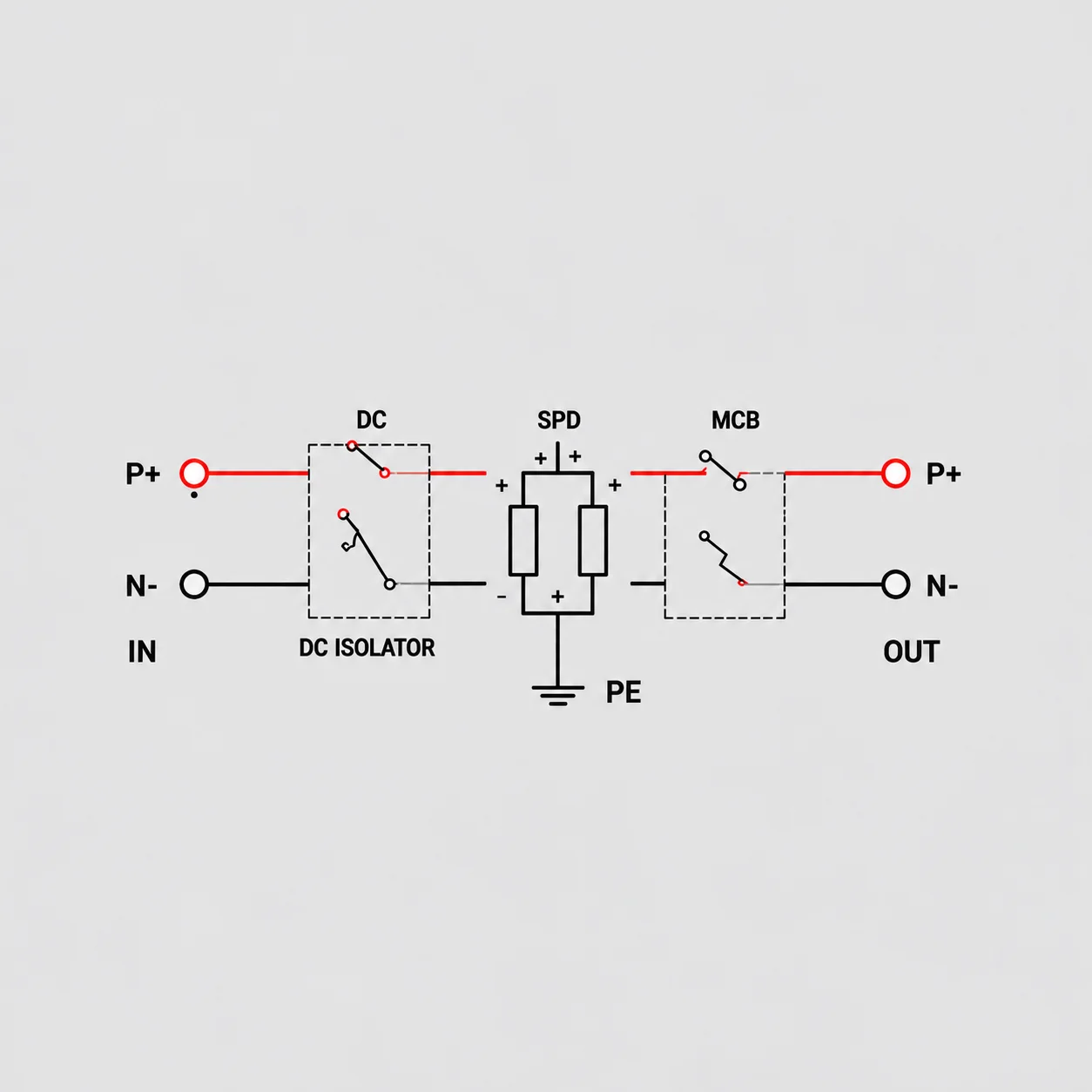

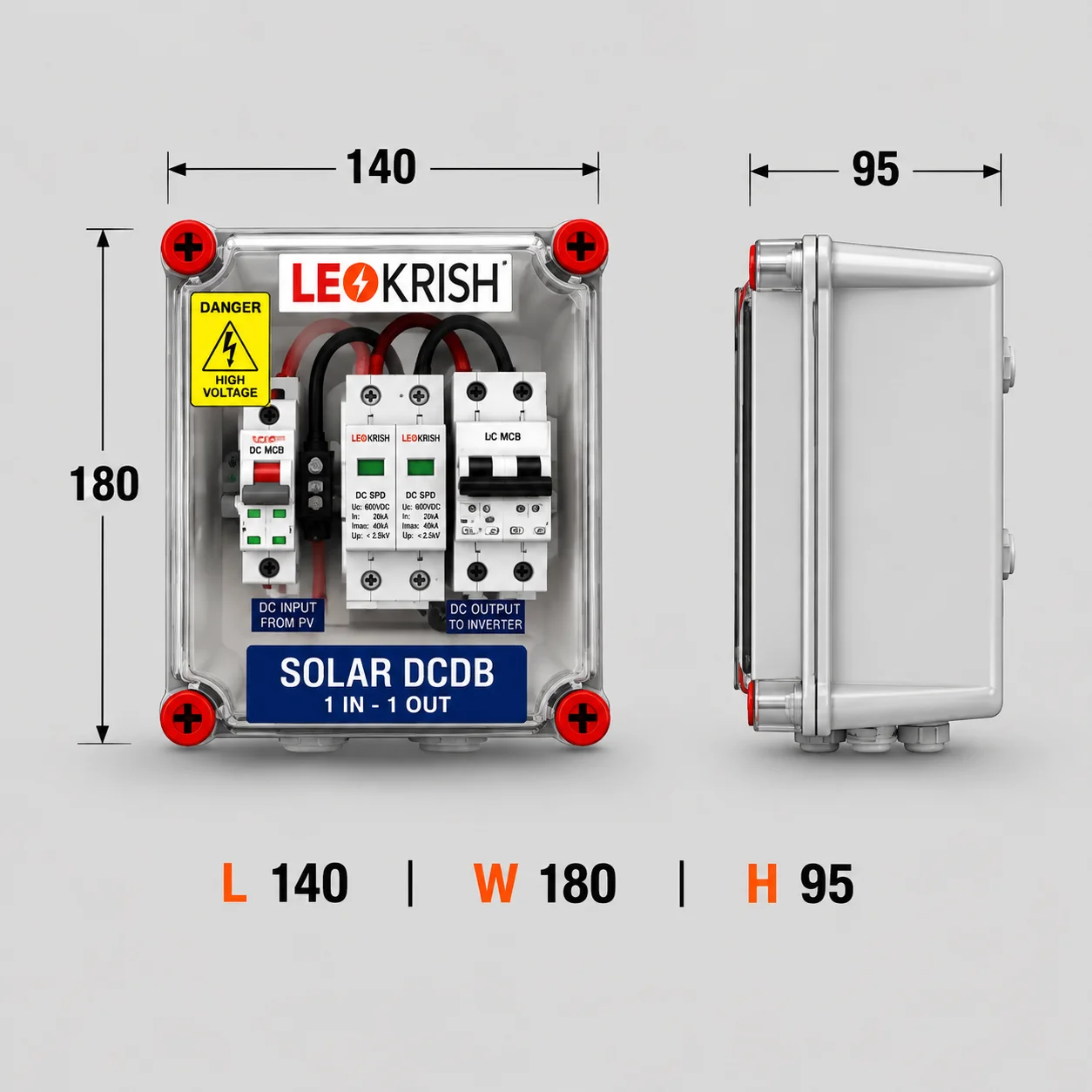

The LEOKRISH Solar DCDB 1 IN – 1 OUT is designed to provide protection, isolation, and safe DC distribution for solar power systems. It helps protect solar installations against overcurrent, electrical surges, and short circuits, while allowing safe disconnection through the integrated DC isolator.
Its compact IP65 polycarbonate enclosure makes it suitable for rooftop, residential, commercial, industrial, and telecom solar applications.
| Specification | Details |
|---|---|
| Product | Solar ACDB Single Phase |
| Model | LK-ACDB-01 |
| Input Voltage | Up to 1000V DC |
| Output | Single Phase AC Distribution |
| MCB | 32A, 240V AC, DP |
| SPD | Type 2, 1000V DC, 20kA |
| DC Isolator | 32A, 1000V DC |
| Enclosure | IP65 Polycarbonate |
| Protection | Overcurrent, Surge, Short Circuit |
| Terminal | P+ / N− IN & OUT |
| Mounting | Wall Mount |
| Application | Rooftop Solar Systems |
| Operating Temperature | -25°C to +60°C |

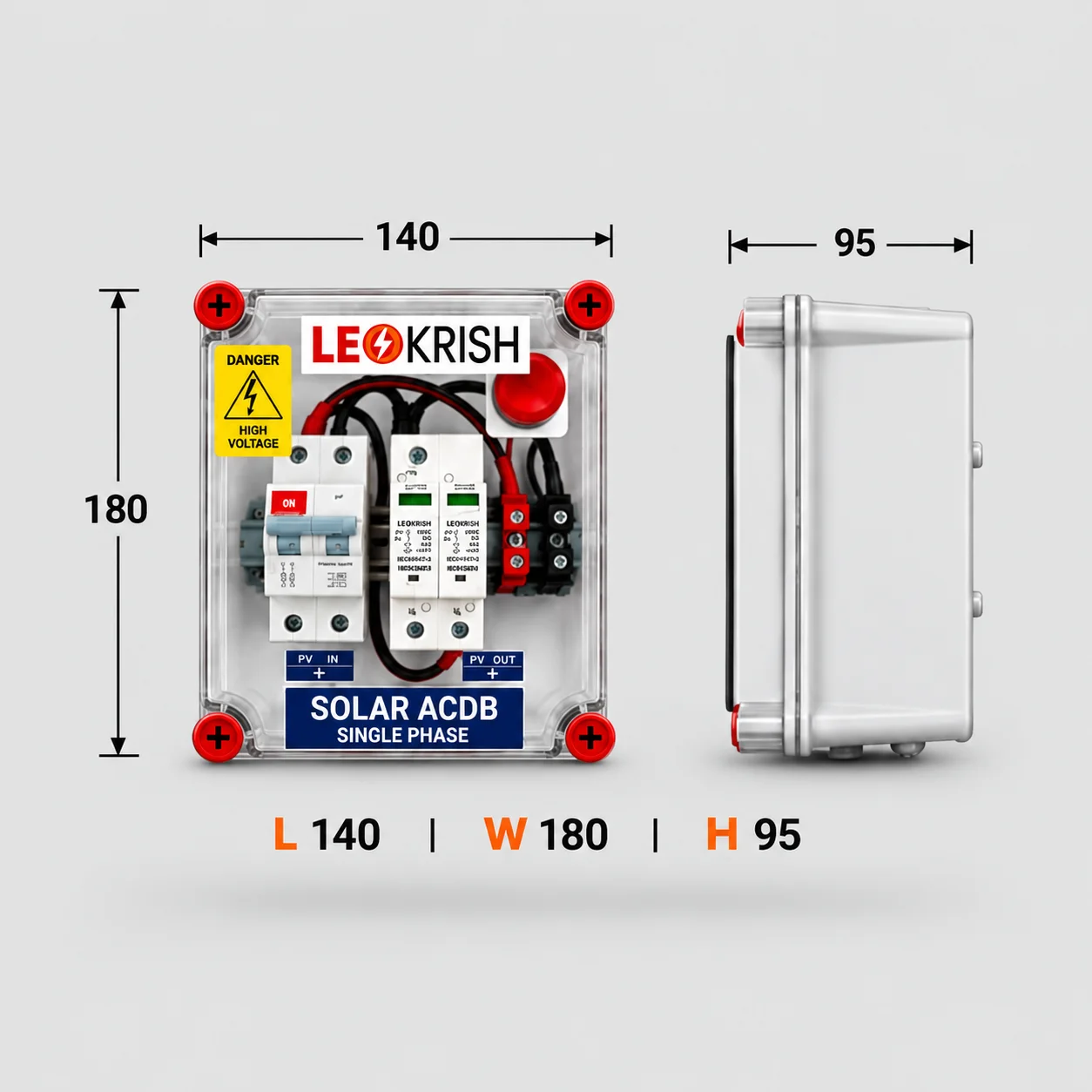

| Dimensions | 140 × 180 × 95 mm |
| Specification | Details |
|---|---|
| Product | Solar ACDB Single Phase |
| Model | LK-ACDB-01 |
| Input Voltage | Up to 1000V DC |
| Output | Single Phase AC Distribution |
| MCB | 32A, 240V AC, DP |
| SPD | Type 2, 1000V DC, 20kA |
| DC Isolator | 32A, 1000V DC |
| Enclosure | IP65 Polycarbonate |
| Protection | Overcurrent, Surge, Short Circuit |
| Terminal | P+ / N− IN & OUT |
| Mounting | Wall Mount |
| Application | Rooftop Solar Systems |
| Operating Temperature | -25°C to +60°C |
| Dimensions | 140 × 180 × 95 mm |
